FloHub provides a full range of industrial process valves. Its quality and unique application are highly recognised by customers in Singapore and overseas. Building on the ever reliable Singapore brand which symbolises quality and excellence service, FloHub strive to become the leading OEM supply chain centre in the region through forging new partnerships with experienced overseas producers.

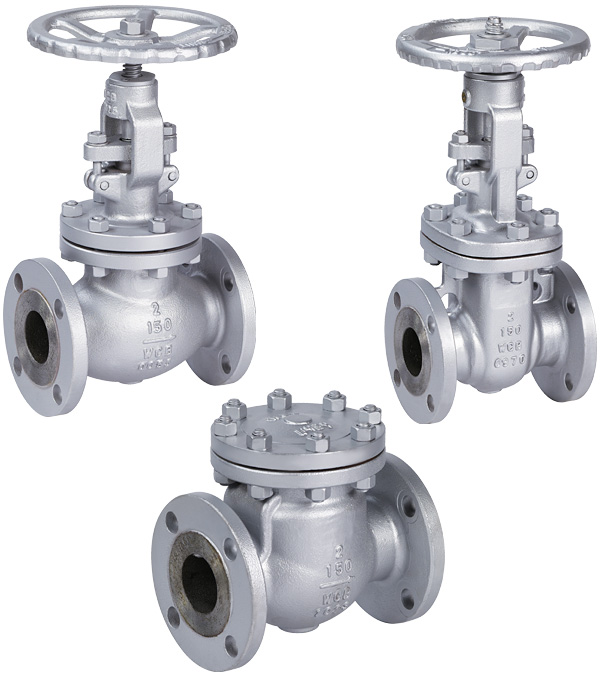

Build with high toughness materials, common for wide diversity of industrial applications with high pressure-temperature service.
Applications
Steam, Liquid, Air, Oil & Gas.
Type of Valves
Gate, Globe, Check Valve
Size Ranges
2” (DN 50) ~ 24” (DN 600)
Body Materials
Carbon Steel, Cast Stainless Steel, Special Alloy
Designs & Standards
Gate Valve, API 600 / 603
ASME Class 150 / Class 300 / Class 600
Steel Valve, ASME B16.34
Face To Face, ASME B16.10
Inspection & Test, API 598

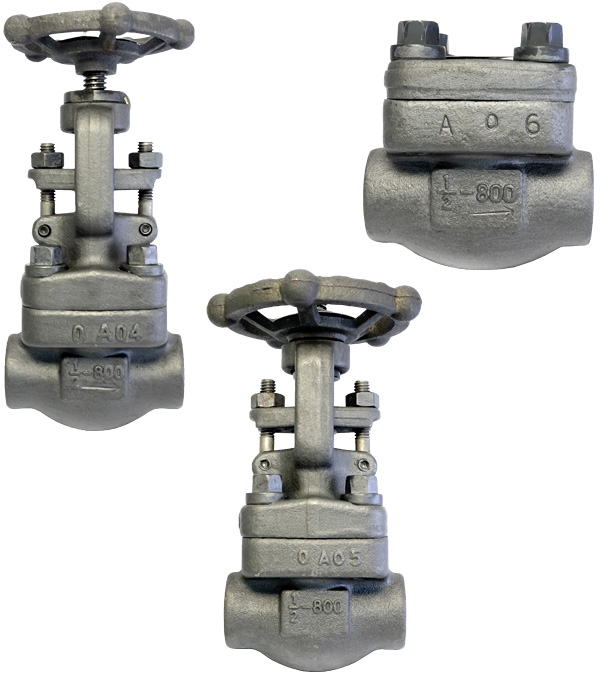

A compact with robust design, common for wide diversity of industrial applications with high pressure-temperature service.
Applications
Steam, Liquid, Air, Oil & Gas.
Type of Valves
Gate, Globe, Lift Check Valve
Size Ranges
1/2” (DN 15) ~ 2” (DN 50)
Body Materials
A105, A182-F304, A182-F316
Designs & Standards
Design API 602
Threaded Ends ASME B1.20.1 / Socket Ends ASME B16.11
Steel Valve, ASME B16.34
ASME Class 150 / Class 300 / Class 600
Inspection & Test, API 598

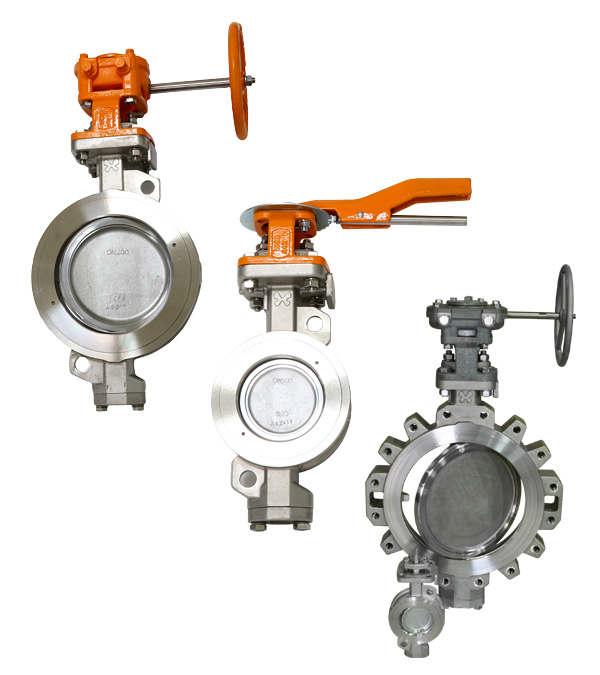

Build with low seat friction, the valve is designed for shutoff and process throttling control in wide diversity of severe and critical applications.
Applications
Steam, Liquid, Air, Oil & Gas.
Size Ranges
2” (DN 50) ~ 24” (DN 600)
Body Materials
A216 Gr. WCB, A315 Gr. CF8, A351 Gr. CF8M
Designs & Standard
Design API 609
Steel Valve, ASME B16.34 / ASME B16.5
ASME Class 150 / Class 300
Inspection & Test, ISO 5208
FloHub Diffuser provides and ensures uniform flow pattern to the suction side of a pump with highest pump efficiency retention.
Applications
Water Pump Systems
Size Ranges
2” (DN 50) ~ 20” (DN 500)
Body Materials
Ductile Iron / Stainless Steel
Designs & Standard
JIS10K / JIS16K / PN10 / PN16 / 150#
